Local setup

Introduction​

This documentation is to help developers to setup the servers and dependencies required to implement and test h5p in boards. At the end of the setup, you should be able to run and use the h5p-editor and h5p-library-management apps without any failures.

Requirements​

  • Docker
  • Git

Steps​

Setting up a local S3 storage​

If you already have a local S3 storage running, skip this step.

minio will be run in docker for storing h5p contents and libraries locally. You can start it with the following docker command:

docker run \
  --name minioS3storage \
  -p 9000:9000 \
  -p 9001:9001 \
  -e "MINIO_ROOT_USER=miniouser" \
  -e "MINIO_ROOT_PASSWORD=miniouser" \
  quay.io/minio/minio server /data --console-address ":9001"

If the ports 9000 or 9001 are not available for your local machine, then use (pay special attention to the ports here!):

docker run \
  --name minioS3storage \
  -p 9100:9000 \
  -p 9101:9001 \
  -e "MINIO_ROOT_USER=miniouser" \
  -e "MINIO_ROOT_PASSWORD=miniouser" \
  quay.io/minio/minio server /data --console-address ":9001"

Or if you have a docker-compose file, add the service and volume for minio:

docker-compose.yml

services:
  minio-s3-storage:
    image: quay.io/minio/minio:latest
    command: server /data --console-address ":9001"
    restart: always
    ports:
      - '9000:9000'
      - '9001:9001'
    environment:
      - MINIO_ROOT_USER=miniouser
      - MINIO_ROOT_PASSWORD=miniouser
    volumes:
      - 'minio:/data'

volumes:
  minio:

If the ports 9000 or 9001 are not available for your local machine, then use (pay special attention to the ports here!):

docker-compose.yml

services:
  minio-s3-storage:
    image: quay.io/minio/minio:latest
    command: server /data --console-address ":9001"
    restart: always
    ports:
      - '9100:9000'
      - '9101:9001'
    environment:
      - MINIO_ROOT_USER=miniouser
      - MINIO_ROOT_PASSWORD=miniouser
    volumes:
      - 'minio:/data'

volumes:
  minio:

See also: Local Project Setup

Configuring the local S3 storage​

Sign in via to your local s3 storage (minio via http://localhost:9001 or http://localhost:9101 with username: miniouser, pw: miniouser).

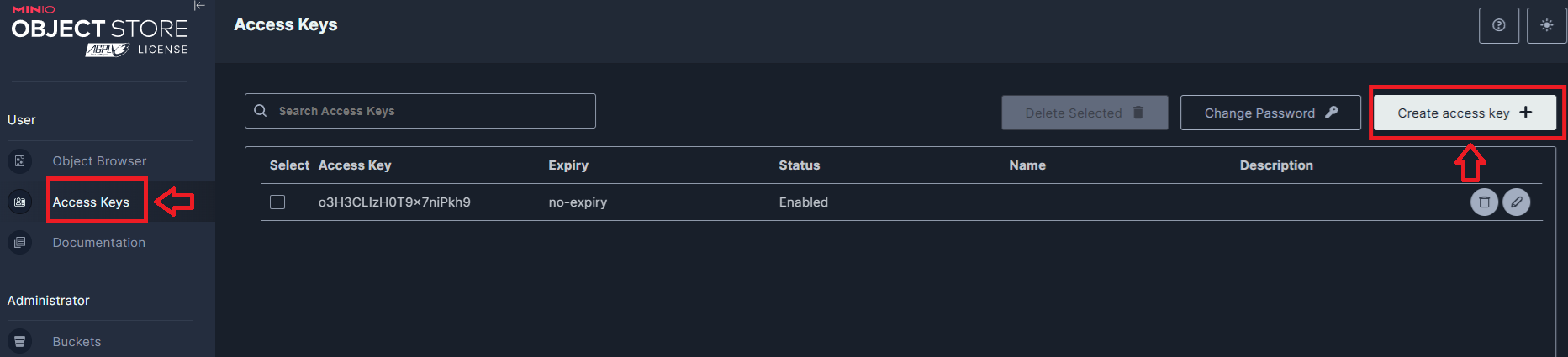

If not yet done, create an access key pair. Make sure to store the access key secret well, as you cannot re-read it after creation.

Minio-Create-Access-Keys

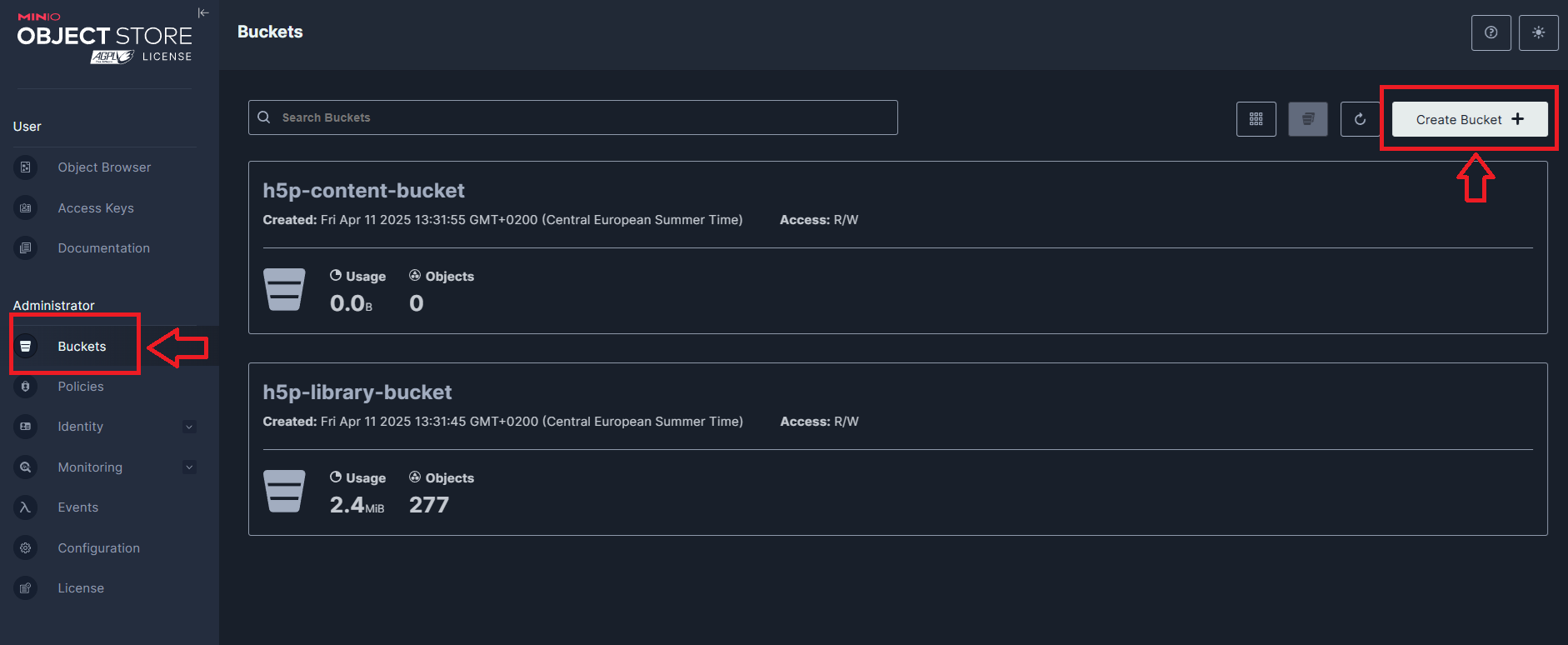

Then, add two buckets for the h5p contents and libraries with the following names:

  • h5p-content-bucket
  • h5p-library-bucket

Minio-Create-Bucket

You may also use any other names you prefer or even just use one bucket. If you do, make sure you adapt to the rest of the steps correctly.

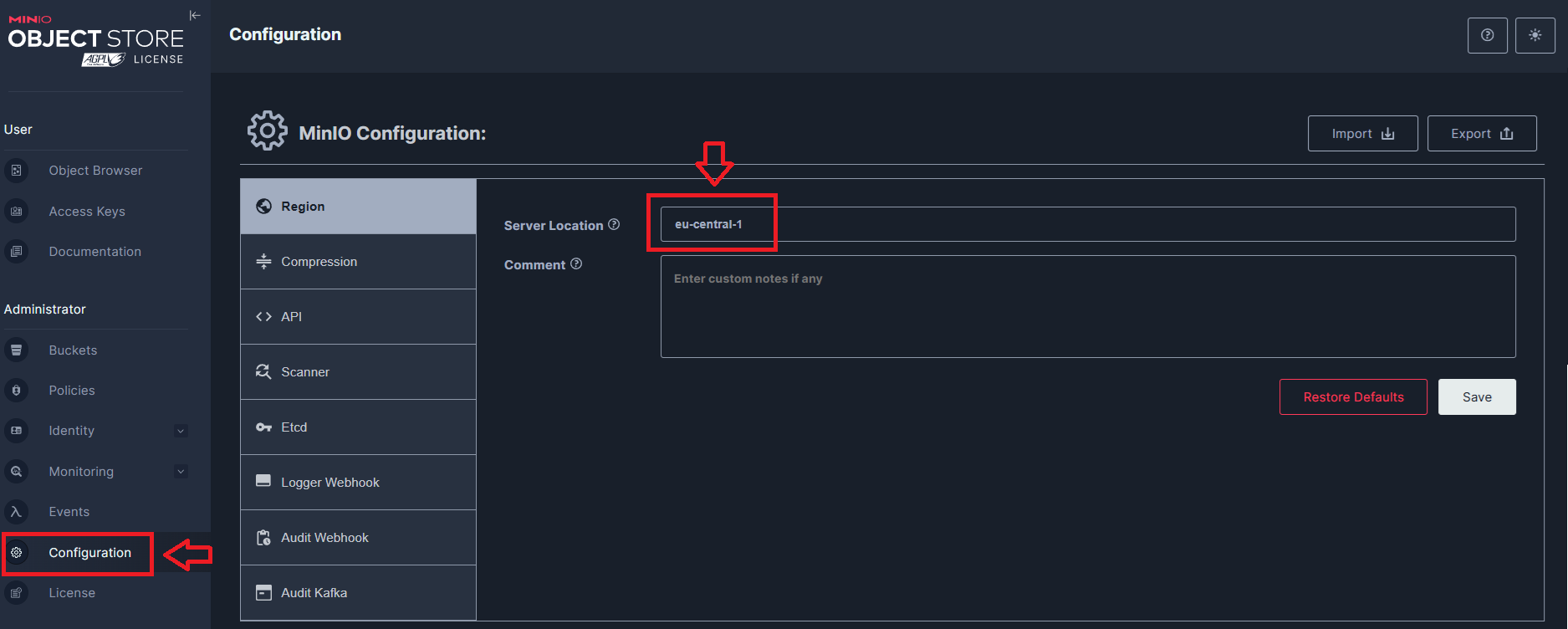

This is optional, you can also change the s3 region to eu-central-1. If you decided not to change the region, please note that the default s3 region for minio is us-east-1.

Minio-Configuration-Region

Configuring h5p for the schulcloud-server​

Several environment variables are needed for both the h5p-editor and h5p-library management to run. Add the following variables to the local .env file

.env

H5P_EDITOR__S3_ENDPOINT=http://localhost:9000
H5P_EDITOR__S3_REGION=eu-central-1

H5P_EDITOR__S3_BUCKET_CONTENT=h5p-content-bucket
H5P_EDITOR__S3_ACCESS_KEY_ID=<LOCAL_S3_KEY_ID>
H5P_EDITOR__S3_SECRET_ACCESS_KEY=<LOCAL_S3_KEY_SECRET>

H5P_EDITOR__S3_BUCKET_LIBRARIES=h5p-library-bucket
H5P_EDITOR__LIBRARIES_S3_ACCESS_KEY_ID=<LOCAL_S3_KEY_ID>
H5P_EDITOR__LIBRARIES_S3_SECRET_ACCESS_KEY=<LOCAL_S3_KEY_SECRET>

Make sure to adapt the values of the variables according to what you have.

Alternatively, you can also just change the values in the development.json file. However, the development config file may not contain all the required fields. You will need to add the missing values to the file locally. Also, note that the values from the environment variables will override those in the development config file.

Testing the h5p-library-management app​

At this point, you have nearly everything for the library management app. You just need to specific which libraries to install in the schulcloud-server config/h5p-libraries.yaml. For example:

h5p-libraries.yaml

h5p_libraries:
  - H5P.ArithmeticQuiz
  - H5P.Chart

This misc.yml in dof-app provides a list of possible h5p libraries. After configuring the libraries, you can run the library management app with the command (or via your IDE using the package.json):

npm run nest:start:h5p:library-management

After the app had finished running, check in the h5p-library-bucket, if the library files are successfully installed.

You may run into problems while running the app, the troubleshooting below contains information to help you solve them.

If you remove any of the folders in the bucket, remember to remove the corresponding metadata from mongodb in the "h5p-library" collection!

Setting up the h5p static files server​

To run the h5p-editor from lumi-education in the client, a static file server is needed. See H5P-Nodejs-Library-Serving static H5P core files for the client

Clone/pull the latest repo of the h5p-staticfiles-server

git clone https://github.com/hpi-schul-cloud/h5p-staticfiles-server.git

Build with docker an image of the h5p-staticfiles-server:

cd ./h5p-staticfiles-server
docker build --network=host -t=h5p-staticfiles-server .

The --network option is to avoid any possible problems regarding dns resolution which often occurs with docker in wsl. You may remove it, if it does not affect you.

Lastly, you can run the static files server:

docker run -p 8080:8080 -d --name=h5p-staticfiles-server h5p-staticfiles-server

Or if you have a docker compose file. Add the following service:

docker-compose.yml

services:
  h5p-staticfiles-server:
    build:
      context: .
    image: h5p-staticfiles-server
    restart: always
    ports:
      - '8080:8080'

If the port 8080 is already in used, change the first "8080" to another valid port number. Do take note of this port number; it is important.

Open a browser and test that the static files server is working correctly with the following url:

The first url should show you the text "pong", the second a picture of a green plus.

IMPORTANT : Each time the h5p-staticfiles-server repo is updated, you will have to redo the steps here to make sure the h5p-editor works properly.

Testing the h5p-editor app​

Before starting the h5p-editor app, make sure to:

Run the latest schulcloud-server, -client and nuxt-client

Update or clone the latest version of the schulcloud-server, client and nuxt-client. See: Local Project Setup

Enable the feature flag "FEATURE_COLUMN_BOARD_H5P_ENABLED" in the .env of the schulcloud-server

.env

FEATURE_COLUMN_BOARD_H5P_ENABLED=true

Run the file-storage app locally

The file-storage app is located in the schulcloud-server repo. Before starting the file-storage, make sure to configure the file-storage app properly. The configurations are in the

.env

FILES_STORAGE__S3_ENDPOINT=http://localhost:9000
FILES_STORAGE__S3_ACCESS_KEY_ID=<YOUR_LOCAL_S3_KEY_ID>
FILES_STORAGE__S3_SECRET_ACCESS_KEY=<YOUR_LOCAL_S3_KEY_SECRET>
FILES_STORAGE__S3_BUCKET=schulcloud
FILES_STORAGE__S3_REGION=eu-central-1

Make sure that the s3 bucket "schulcloud" is created in the s3 storage (minio). This is not needed for the h5p editor to run, but to completely setup the file-storage app you will also need to add an entry into the "file-storage" collection. See Local Project Setup-Lokales File System

After configuring the file-storage app, you can run the app with the following command:

npm run nest:start:files-storage

Check that the h5p-staticfiles-server is running​

This should already be done in the previous step.

If you changed the port number of the h5p-staticfiles-server, you will need to change it in the dev-server-config.js of the nuxt-client as well

Start and test the h5p-editor​

You can start the h5p-editor app via the command (or via package.json):

npm run nest:start:h5p

To test if the h5p-editor works:

  1. Sign into your local instance of SVS as a teacher
  2. Create a course & board
  3. Create a h5p element
  4. Click on the empty h5p element

If everything works you should see a new window appear with the h5p-editor. The editor should contain the library you installed via the h5p-library-management app.

You may further test if the library works by creating a content out of the library.

Troubleshooting setup problems​

This section lists several problems that may occur when setting up h5p locally and possible solutions to them.

I cannot open the minio console (connection refused)​

Remove the docker container for minio, then run the minio container again.

Check if the ports in your docker command/compose file are correct. If you change the 9001 port to another port number, the port to access the minio console will change to the other port number!

Socket hang up/network error when connecting to the API server of minio​

If you are using docker in WSL, the problem could be that your apps (i.e. file-storage, h5p-library-management) than are run in the windows environment is unable to resolve the exact "localhost" ip address of the minio api server (usually localhost:9000).

A quick workaround for this is by replacing "localhost" in the H5P_EDITOR__S3_ENDPOINT with the aforementioned exact ip address. This can be determined via the command:

wsl hostname -I

.env

H5P_EDITOR__S3_ENDPOINT=http://172.27.120.97:9000 # just an example

You may be presented with multiple ip addresses. If this is the case, then you will need to find the correct one via try-and-error (replacing localhost with each address and re-rerunning the app until no error is thrown). This is just an assumption, but the correct ip address seems to not end with XXX.XX.0.1.

Another workaround is to run your apps in the wsl. The connection is then run in the wsl network, removing the need to resolve localhost between the windows and wsl network.

The real solution to this is probably to configure the dns resolution between wsl and windows correctly. This is out of scope of this documentation and should be solved independently by yourself.

Package validation failed while installing h5p-libraries​

This problem occurs when you start the h5p-library-management app and the h5p-libraries are not installed because of the following error:

Error: package-validation-failed:api-version-unsupported (component: H5P.MarkTheWords-1.11, current: 1.24, required: 1.27)

The message is confusing, but it means that the @lumieducation/h5p-server version that is currently installed is incompatible with the library (here above shown as component) you specified. The only solutions here are either install a compatible version of @lumieducation/h5p-server (usually by updating its version number in the package.json) or remove the incompatible library from the schulcloud-server/config/h5p-libraries.yaml.

The library-management-app runs without error, but I see no library files installed in the bucket​

The app does not read from s3 which files or folders already exist. It records an entry in the "h5p-library" collection for each library that is installed. The s3 and the mongodb collection can naturally be not synced i.e. mongodb says library A exists in the collection, but the files for library A does not exist in s3. So, the app did not install the files in s3. To solve this, you can either:

  • remove all library files and folders from s3 and clear the "h5p-library" collections, run the library-management app
  • remove all the specified library in schulcloud-server/config/h5p-libraries.yaml ,run the library-management app,
  • add your list of libraries again, run the library-management app
